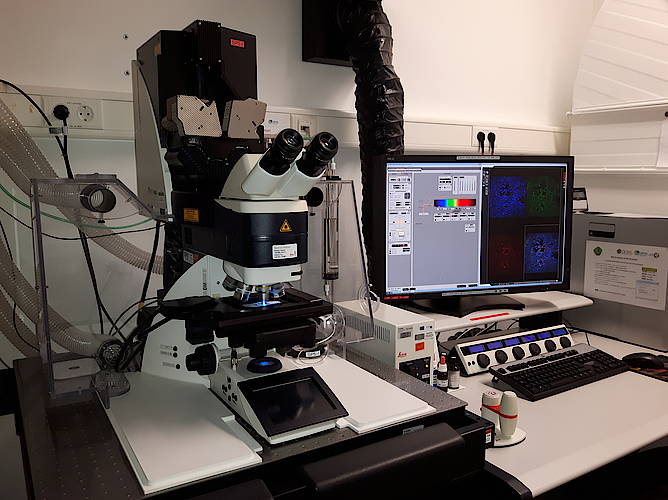

SP5 I upright BIOTEC (Leica)
Our Leica TCS SP5 I confocal setup is designed for working on living sample and dedicated for high resolution imaging in XYZ. The upright configuration and the dipping lenses make it optimal for embryo development studies. An incubator allows long timelapse with living samples. The laser lines are well distributed over the spectrum and especially good for common dye combinations. Due to the conventional setup, it's straight forward to work with.
Category
Laser scanning confocal
Location
BIOTEC, 2nd floor, LMF CMCB, room 220
Suitable for Specimen
Suitable for Technique
Microscope Stand
Objectives
10x/0.4 HC PL APO CS, Air, DIC, Leica
| Immersion: | Air |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 2.2 mm |
| Nomarski Prism: | A |
| Thread: | M25 |
| Tube Length: | infinity |
| Objective ID: | CMCB 01 10x/0.4 Leica |
| Order Number: | 11506285 |
20x/0.5 HC APO L U-V-I, Water, DIC, Leica
| Immersion: | Water |
| Working Distance: | 3.5 mm |
| Nomarski Prism: | D1 |
| Thread: | M25 |
| Tube Length: | infinity |
| Objective ID: | CMCB 03 20x/0.5 Water dipping Leica |
| Order Number: | 11506147 |
20x/0.7 HC PL APO CS, Air, DIC, Leica
| Immersion: | Air |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 0.59 mm |
| Thread: | M25 |
| Tube Length: | infinity |
| Objective ID: | CMCB 98 20x/0.7 Leica |
| Order Number: | 11506513 |
40x/0.75 HC PL APO, Air, DIC, Leica
| Immersion: | Air |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 0.28 mm |
| Nomarski Prism: | D |
| Thread: | M25 |
| Tube Length: | infinity |
| Objective ID: | CMCB 04 40x/0.75 Leica |
| Order Number: | 11506173 |
| Inventory Number: | 181299000 |
40x/0.8 HC APO L, Water, DIC, Leica
| Immersion: | Water |
| Working Distance: | 3.3 mm |
| Nomarski Prism: | D1 |
| Thread: | M25 |
| Tube Length: | infinity |
| Objective ID: | CMCB 11 40x/0.8 Water dipping Leica |
| Order Number: | 11506155 |
63x/0.9 HC APO L U-V-I, Water, DIC, Leica
| Immersion: | Water |
| Working Distance: | 2.2 mm |
| Nomarski Prism: | D1 |
| Thread: | M25 |
| Tube Length: | infinity |
| Objective ID: | CMCB 05 63x/0.9 Water dipping Leica |
| Order Number: | 11506148 |
63x/1.2 HC PL APO lambda blue, Water, DIC, Leica
| Immersion: | Water |
| Collar: | coverslip correction |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 0.22 mm |
| Nomarski Prism: | D |
| Thread: | M25 |
| Tube Length: | infinity |
| Objective ID: | CMCB 06 63x/1.2 Water Leica corr. |
| Order Number: | 11506213 |
63x/1.4 HC PL APO lambda blue, Oil, DIC, Leica
| Immersion: | Oil |
| Collar: | NA correction |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 0.1 mm |
| Nomarski Prism: | E |
| Thread: | M25 |
| Tube Length: | infinity |
| Objective ID: | CMCB 31 63x/1.4-0.6 Oil Leica corr. |
| Order Number: | 11506192 |
100x/1.47 HCX PL APO, Oil, DIC, Leica
| Immersion: | Oil |
| Collar: | temperature and coverslip correction |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 0.09 mm |
| Thread: | M25 |
| Tube Length: | infinity |
| Objective ID: | CMCB 162 100x/1.47 Oil Leica corr. |
| Order Number: | 11506318 |
100x/1.4 HC PL APO, Oil, DIC, Leica
| Immersion: | Oil |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 0.13 mm |
| Thread: | M25 |
| Tube Length: | infinity |
| Objective ID: | CMCB 169 100x/1.4 Oil Leica |
| Order Number: | 11506372 |
Condenser
Fluorescence Filter Cubes
motorized revolver
DAPI (set A)
single cube for DAPI, Alexa 350
- BP 360/40 (BP 340-380), excitation filter, bandpass, Leica
- LP 400, dichromatic mirror, longpass, Leica
- LP 425, emission filter, longpass, Leica
Leica, set A
GFP (set L5)
single cube for Alexa488/GFP, FITC
- BP 480/40 (BP 460-500), excitation filter, bandpass, Leica
- LP 505, dichromatic mirror, longpass, Leica
- BP 527/30 (BP 512-542), emission filter, bandpass, Leica
Leica, set L5
Dsred (set F46-005)
single cube for DsRed, mCherry/TexasRed
- LP 570, dichromatic mirror, longpass, AHF
- BP 620/60 (BP 590-650), emission filter, bandpass, AHF
- BP 545/30 (BP 530-560), excitation filter, bandpass, AHF
Leica, set F46-005
polarizer (set Analysator)
polarizer cube for DIC/Polarization
Leica, set Analysator
Transmitted Illumination
Lamp (Halogen, 100W)
Fluorescence Illumination
HXP 120C
Leica, Metal halide lamp, 120W, integrated
405nm pulsed
Laser Diode, integrated
458, 477, 488, 496, 514nm multiline
Laser Argon, integrated
561nm
Laser DPSS, integrated
633nm
Laser HeNe, integrated
XY Stage
Scan Head
Incubation
Computer
Software
Additional Information
