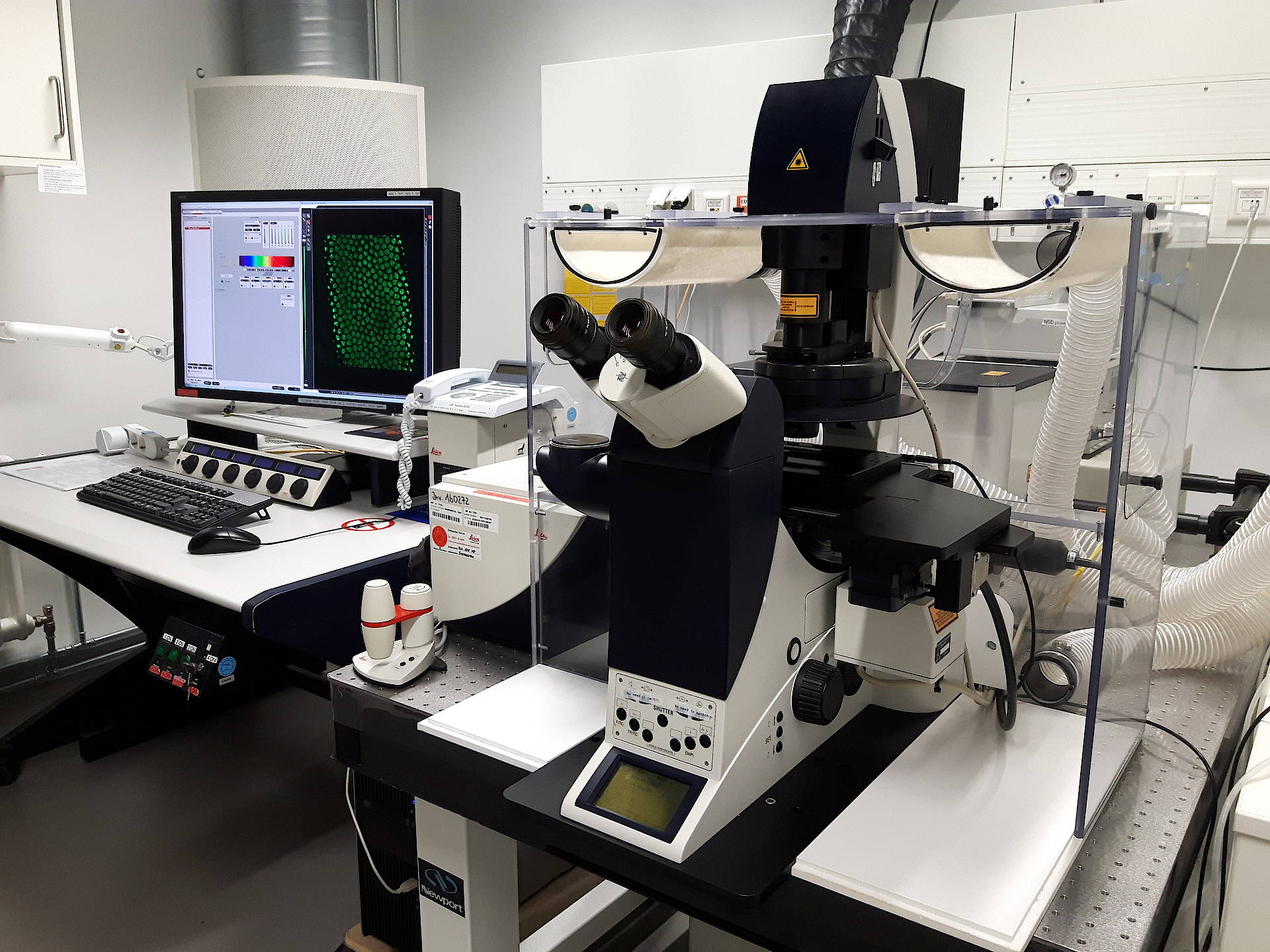

SP5 MP inverse CRTD (Leica)
Our Leica SP5 MP is designed for routine work and dedicated for high resolution imaging in XYZ. The laser lines are well distributed over the spectrum and especially good for common dye combinations. Due to the conventional setup, it's straight forward to work with. A Mai Tai IR laser allows the use of mutli-photon imaging, for thick or sensitive samples, or UV-excitable dyes. A resonating scanner allows fast confocal imaging.
Category
Laser scanning confocal, Multi photon
Location
CRTD, basement south, LMF CMCB, room -1.119
Suitable for Specimen
Suitable for Technique
Microscope Stand
Objectives
10x/0.4 HC PL APO CS, Air, DIC, Leica
| Immersion: | Air |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 2.2 mm |
| Nomarski Prism: | A |
| Thread: | M25 |
| Tube Length: | infinity |
| Objective ID: | CMCB 28 10x/0.4 Leica |
| Order Number: | 11506285 |
20x/0.7 HC PL APO CS, Air, DIC, Leica
| Immersion: | Air |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 0.59 mm |
| Thread: | M25 |
| Tube Length: | infinity |
| Objective ID: | CMCB 46 20x/0.7 Leica |
| Order Number: | 11506166 |
25x/0.95 HC IRAPO L, Water, DIC, Leica
| Immersion: | Water |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 2.4 mm |
| Thread: | M25 |
| Tube Length: | infinity |
| Objective ID: | CMCB 153 25x/0.95 Water Leica |
| Order Number: | 11506340 |
40x/0.75 HC PL APO, Air, DIC, Leica
| Immersion: | Air |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 0.28 mm |
| Nomarski Prism: | D |
| Thread: | M25 |
| Tube Length: | infinity |
| Objective ID: | CMCB 15 40x/0.75 Leica |
| Order Number: | 11506173 |
40x/1.25 HC PL APO lambda blue, Oil, DIC, Leica
| Immersion: | Oil |
| Collar: | NA correction |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 0.1 mm |
| Nomarski Prism: | D |
| Thread: | M25 |
| Tube Length: | infinity |
| Objective ID: | CMCB 30 40x/1.25-0.75 Oil Leica corr. |
| Order Number: | 11506253 |
63x/1.2 HC PL APO, Water, DIC, Leica
| Immersion: | Water |
| Collar: | coverslip correction |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 0.22 mm |
| Nomarski Prism: | D |
| Thread: | M25 |
| Tube Length: | infinity |
| Objective ID: | CMCB 21 63x/1.2 Water Leica corr. |
| Order Number: | 11506279 |
100x/1.4 HC PL APO CS, Oil, DIC, Leica
| Immersion: | Oil |
| Collar: | NA correction |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 0.22 mm |
| Nomarski Prism: | D |
| Thread: | M25 |
| Tube Length: | infinity |
| Objective ID: | CMCB 07 100x/1.4-0.7 Oil Leica corr. |
| Order Number: | 11506210 |
Condenser
Fluorescence Filter Cubes
motorized revolver
DAPI (set A)
single cube for DAPI, Alexa 350
- BP 360/40 (BP 340-380), excitation filter, bandpass, Leica
- LP 400, dichromatic mirror, longpass, Leica
- LP 425, emission filter, longpass, Leica
Leica, set A
GFP (set I3)
single cube for Alexa488/GFP
- BP 470/40 (BP 450-490), excitation filter, bandpass, Leica
- LP 510, dichromatic mirror, longpass, Leica
- LP 590, emission filter, bandpass, Leica
Leica, set I3
Cy3 (set N2.1)
single cube for Alexa555/Cy3/RFP, TRITC
- (BP 515-560), excitation filter, bandpass, Leica
- LP 580, dichromatic mirror, longpass, Leica
- LP 590, emission filter, longpass, Leica
Leica, set N2.1
polarizer (set Analysator)
polarizer cube for DIC/Polarization
Leica, set Analysator
Transmitted Illumination
Lamp (Halogen, 100W)
Fluorescence Illumination
HXP 120C
Leica, Metal halide lamp, 120W, integrated
405nm pulsed
Laser Diode, integrated
458, 477, 488, 496, 514nm multiline
Laser Argon, integrated
561nm
Laser DPSS, integrated
633nm
Laser HeNe, integrated
Vision II 680-1080nm
Coherent, Laser Multiphotonen Chameleon, integrated
XY Stage
Scan Head
Incubation
Computer
Software
Additional Equipment
A Mai Tai IR laser allows the use of mutli-photon imaging, for thick or sensitive samples, or UV-excitable dyes.
A resonating scanner allows fast confocal imaging.
Additional Information
