St2 - Olympus "Worm LTTL" (OLYMPUS)

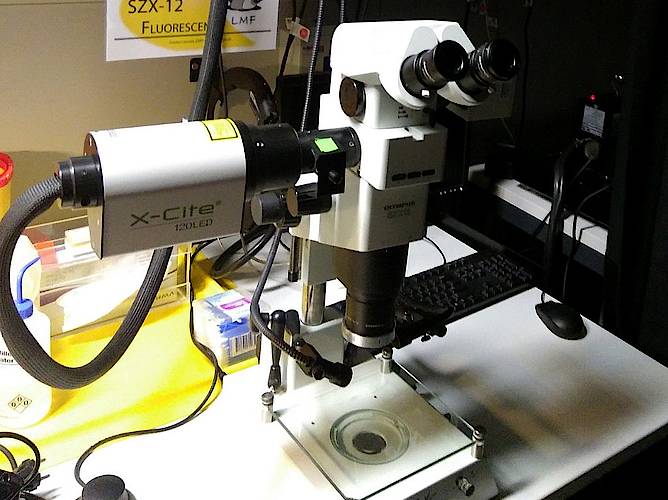

Olympus SZX12 upright stereo microscope (transmitted light illumination+fluorescence) - video-camera (TV-resolution, 25 frames/s)

Magnification from 7x to 90x.





Category

Stereo / zoom microscope

Location

MPI-CBG, LMF MPI-CBG, room 038B

Microscope Stand

OLYMPUS SZX12 Stereo, upright stand
manual objective revolver, manual z-focus

Additional magnification: 7x - 90x manual magnification

Objectives

1x/ Plan Apo, Air, OLYMPUS

Immersion: Air
Objective ID: MPI-CBG St2 - 1x Olympus
Fluorescence Filter Cubes

slider

RFP ()

single cube for RFP

eGFP ()

single cube for GFP

Transmitted Illumination

Lamp (Halogen Spot light illumination - goose neck)

Lamp (Halogen back light illumination)

Camera

Imagine Source DMK 31AF03, Monochrome CCD camera, dexel size 4.65 µm

port Top
bit depth 8 bit
sensor size 6mm
maximum frame size 1024x768 dexel
