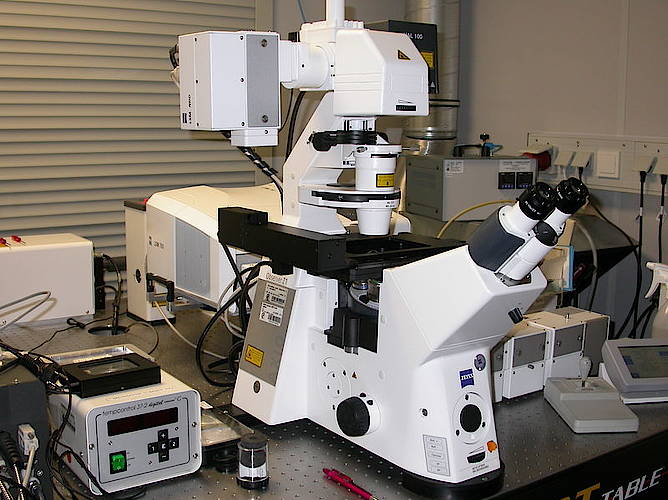

MZ2 - Zeiss 2photon inverted (Zeiss)
Zeiss LSM 780 NLO
Multiphoton Laser Scanning Microscope with a tunable pulsed near-infra-red laser (Chameleon Vision II) for multiphoton excitation. Single/multi-photon point scanning confocal system with two PMTs and one 32-channel GaAsP detector for spectral detection, two non-descanned GaAsP detectors and three PMTs for multi-photon detection, and three transmitted light detectors. Motorized stage for multi-point acquisition.
Category
Laser scanning confocal, Multi photon
Location
MPI-CBG, LMF MPI-CBG, room 456A
Suitable for Specimen
Suitable for Technique
Microscope Stand
Objectives
10x/0.45 Plan-Apochromat, Air, Zeiss
| Immersion: | Air |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 2 mm |
| Thread: | M27 |
| Tube Length: | infinity |
| Objective ID: | MPI-CBG 118 10x/0.45 Zeiss |
| Order Number: | 420640-9900 |
20x/0.8 Plan-Apochromat, Air, Zeiss
| Immersion: | Air |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 0.55 mm |
| Thread: | RMS (20.32×0.71 mm) |
| Tube Length: | infinity |
| Objective ID: | MPI-CBG 119 20x/0.8 Zeiss |
| Order Number: | 440640-9903 |
| Inventory Number: | 4056760000 |
25x/0.8 LD LCI Plan-Apochromat, W / Glyc / Oil, DIC, Zeiss
| Immersion: | W / Glyc / Oil |
| Collar: | immersion correction |
| Coverslip Thickness: | 0-0.17 |
| Working Distance: | 0.57 mm at cover glass 0.17 mm |
| Nomarski Prism: | LCI PN 25/0,8 II (426947) |
| Thread: | M27 |
| Tube Length: | infinity |
| Objective ID: | MPI-CBG 120 25x/0.8 Zeiss |
| Order Number: | 420852-9870 |
40x/1.1 LD C-Apochromat, Water, DIC, Zeiss
| Immersion: | Water |
| Collar: | coverslip correction |
| Coverslip Thickness: | 0.14-0.19 |
| Working Distance: | 0.62 mm at cover glass 0.17 mm |
| Thread: | M27 |
| Tube Length: | infinity |
| Objective ID: | MPI-CBG 121 40x/1.1 Zeiss |
| Order Number: | 421867-9970 |
| Inventory Number: | 4084400000 |
40x/1.2 C-Apochromat, Water, DIC, Zeiss
| Immersion: | Water |
| Collar: | coverslip correction |
| Coverslip Thickness: | 0.14-0.19 |
| Working Distance: | 0.28 mm at cover glass 0.17 mm |
| Thread: | M27 |
| Tube Length: | infinity |
| Objective ID: | MPI-CBG 122 40x/1.2 Zeiss |
| Order Number: | 421767-9970 |
63x/1.4 Plan-Apochromat, Oil, DIC, Zeiss
| Immersion: | Oil |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 0.19 mm |
| Thread: | M27 |
| Tube Length: | infinity |
| Objective ID: | MPI-CBG 123 63x/1.4 Zeiss |
| Order Number: | 440760-9905 |
63x/1.3 LCI Plan-Neofluar, W / Glyc, DIC, Zeiss
| Immersion: | W / Glyc |
| Collar: | immersion correction |
| Coverslip Thickness: | 0.15-0.19 |
| Working Distance: | 0.17 mm at cover glass 0.17 mm |
| Nomarski Prism: | LCI PN 63/1,30 II HC (426958), LCI PN 63/1,30 III (426959) |
| Thread: | M27 |
| Tube Length: | infinity |
| Objective ID: | MPI-CBG 124 63x/1.3 Zeiss |
| Order Number: | 420882-9970-720 |
Condenser
Fluorescence Filter Cubes
motorized revolver
GFP (set 38)
single cube for Alexa488/GFP, CFP, FITC
- BP 470/40 (BP 450-490), excitation filter, bandpass, Zeiss
- LP 495, dichromatic mirror, longpass, Zeiss
- BP 525/50 (BP 500-550), emission filter, bandpass, Zeiss
Zeiss, set 38
Alexa 546 (set 38)
single cube for Alexa 546, TRITC, Cy3, DsRed
- BP 545/25 (BP 520-570), excitation filter, bandpass, Zeiss
- LP 570, dichromatic mirror, longpass, Zeiss
- BP 605/70 (BP 570-640), emission filter, bandpass, Zeiss
Zeiss, set 38
DAPI (set 488049-9901-000)
single cube for DAPI
- G 365, excitation filter, bandpass, Zeiss
- LP 395, dichromatic mirror, longpass, Zeiss
- BP 445/50 (BP 420-470), emission filter, bandpass, Zeiss
Zeiss, set 38, set 488049-9901-000
Transmitted Illumination
Lamp (Halogen, 100W)
Fluorescence Illumination
HXP 120C
Zeiss, Metal halide lamp, 120W, manual
405nm
Laser Diode, integrated
561nm
Laser DPSS, integrated
594nm
Laser HeNe, integrated
633nm
Laser HeNe, integrated
458, 488, 514nm multiline
Laser Argon, manual
680-1080 nm
Coherent, Laser Multiphotonen Chameleon, manual
XY Stage
Hardware Autofocus
Zeiss Definite Focus.1
Scan Head
