W3 - Zeiss CCD Upright !! Retired !! (Zeiss)

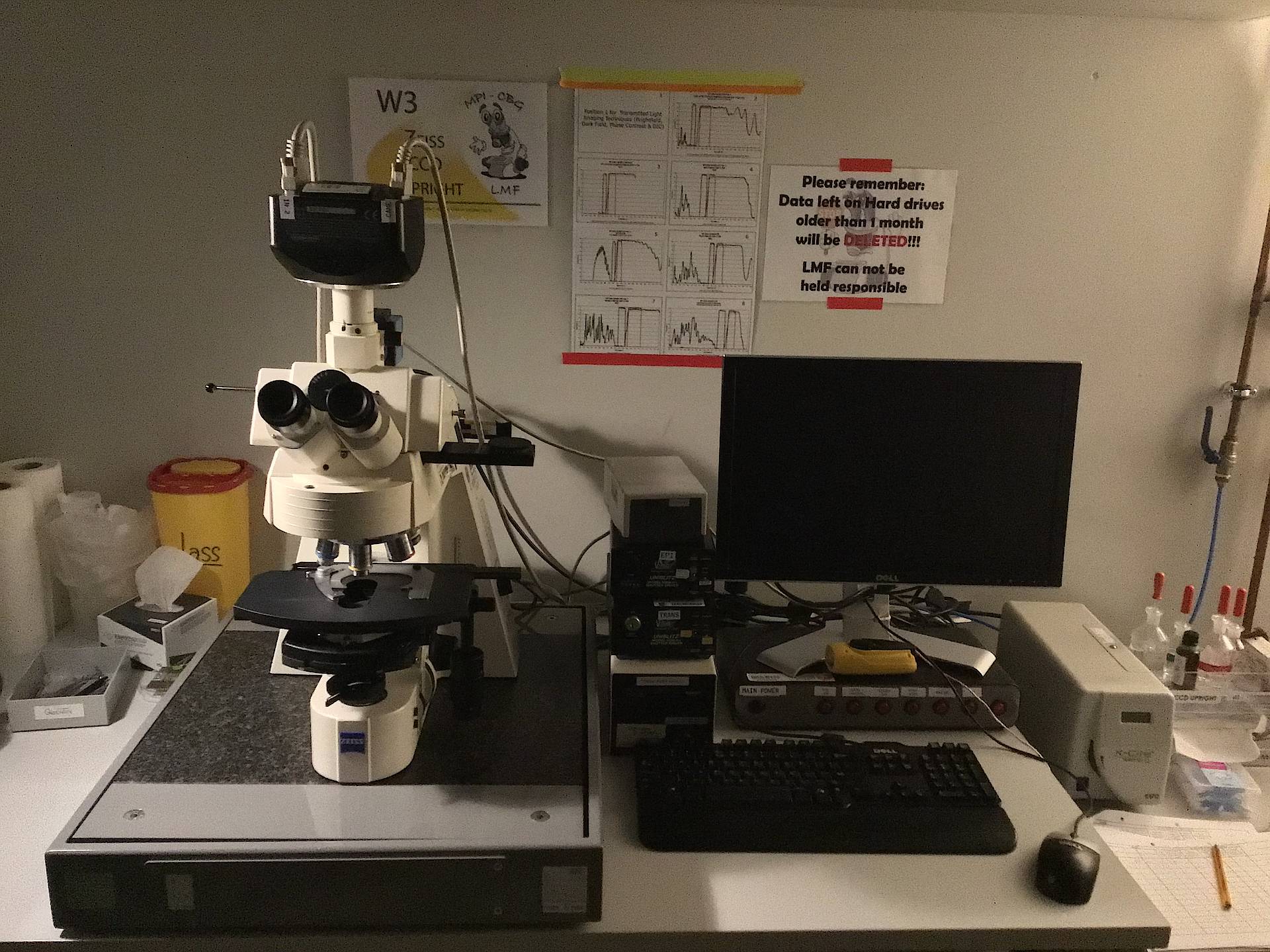

It is an upright, motorized microscope with medium sensitivity CCD camera. For quick checking of your samples.
Category
Widefield
Location
MPI-CBG, LMF MPI-CBG, room U32
Suitable for Specimen
Microscope Stand
Objectives
5x/0.25 Fluar, Air, Zeiss
| Immersion: | Air |
| Coverslip Thickness: | - |
| Working Distance: | 12.5 mm |
| Thread: | RMS (20.32×0.71 mm) |
| Tube Length: | infinity |
| Objective ID: | MPI-CBG 251 5x/0.25 Zeiss |
| Order Number: | 440125 |
10x/0.3 Plan-Neofluar, Air, Zeiss
| Immersion: | Air |
| Collar: | coverslip correction |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 5.2 mm |
| Thread: | RMS (20.32×0.71 mm) |
| Tube Length: | infinity |
| Objective ID: | MPI-CBG 228 10x/0.3 Zeiss |
| Order Number: | 440330 |
20x/0.5 Achroplan, Water, Ph2, Zeiss
| Immersion: | Water |
| Working Distance: | 1.9 mm |
| Nomarski Prism: | 20/0,5W II (444448) |
| Thread: | RMS (20.32×0.71 mm) |
| Tube Length: | infinity |
| Objective ID: | MPI-CBG 140 20x/0.5 Zeiss |
| Order Number: | 440049 |
40x/0.75 Plan-Neofluar, Air, Ph2, Zeiss
| Immersion: | Air |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 0.71 mm |
| Thread: | RMS (20.32×0.71 mm) |
| Tube Length: | infinity |
| Objective ID: | MPI-CBG 88 40x/0.75 Zeiss |
| Order Number: | 440350 |
63x/0.8 Achroplan, Air, Ph2, Zeiss
| Immersion: | Air |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 0.29 mm |
| Thread: | RMS (20.32×0.71 mm) |
| Tube Length: | infinity |
| Objective ID: | MPI-CBG 229 63x/0.8 Zeiss |
| Order Number: | 440060 |
63x/1.2 C-Apochromat, Water, Ph2, Zeiss
| Immersion: | Water |
| Collar: | coverslip correction |
| Coverslip Thickness: | 0.15-0.17 |
| Working Distance: | 0.24 mm |
| Thread: | RMS (20.32×0.71 mm) |
| Tube Length: | infinity |
| Objective ID: | MPI-CBG 255 63x/1.2 Zeiss |
| Order Number: | 440668 |
63x/1.4 Plan-Apochromat, Oil, DIC, Zeiss
| Immersion: | Oil |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 0.19 mm |
| Nomarski Prism: | PA 63/1,4 HC II (426952), PA 63/1,40 III (426957) |
| Thread: | RMS (20.32×0.71 mm) |
| Tube Length: | infinity |
| Objective ID: | MPI-CBG 170 63x/1.4 Zeiss |
| Order Number: | 440762-9904 |
100x/1.3 Plan-Neofluar, Oil, DF, Zeiss
| Immersion: | Oil |
| Collar: | NA correction |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 0.2 mm |
| Thread: | M27 |
| Tube Length: | infinity |
| Objective ID: | MPI-CBG 252 100x/1.3-0.7 Zeiss |
| Order Number: | 420496-9900 |
100x/1.4 Plan-Apochromat, Oil, DIC, Zeiss
| Immersion: | Oil |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 0.17 mm |
| Nomarski Prism: | PA 100/1,4 HC II (426949), PA 100/1,40 III (426941) |
| Thread: | RMS (20.32×0.71 mm) |
| Tube Length: | infinity |
| Objective ID: | MPI-CBG 103 100x/1.4 Zeiss |
| Order Number: | 440782-9902 |
Condenser
Fluorescence Filter Cubes
motorized revolver
DAPI ()
single cube for DAPI, Alexa 350
- BP 390/18 (BP 381-399), excitation filter, bandpass, AHF
- LP 416, dichromatic mirror, longpass, AHF
- BP 460/60 (BP 430-490), emission filter, bandpass, AHF
CFP ()
single cube for CFP
- BP 434/17 (BP 425-443), excitation filter, bandpass, AHF
- LP 452, dichromatic mirror, longpass, AHF
- BP 479/40 (BP 459-499), emission filter, bandpass, AHF
TRITC ()
single cube for TRITC, Alexa 555, Cy3
- BP 543/22 (BP 532-554), excitation filter, bandpass, AHF
- LP 562, dichromatic mirror, longpass, AHF
- BP 593/40 (BP 573-613), emission filter, bandpass, AHF
mCherry ()
single cube for mCherry, Cy3.5
- BP 562/40 (BP 542-582), excitation filter, bandpass, AHF
- LP 593, dichromatic mirror, longpass, AHF
- BP 641/75 (BP 604-679), emission filter, bandpass, AHF
Cy5 ()
single cube for Alexa633/Cy5
- BP 628/40 (BP 608-648), excitation filter, bandpass, AHF
- LP 660, dichromatic mirror, longpass, AHF
- BP 692/40 (BP 672-712), emission filter, bandpass, AHF
eGFP ()
single cube for Alexa488/GFP, FITC
- BP 472/30 (BP 457-487), excitation filter, bandpass, AHF
- LP 495, dichromatic mirror, longpass, AHF
- BP 520/35 (BP 503-538), emission filter, bandpass, AHF
YFP ()
single cube for YFP
- BP 500/20 (BP 480-520), excitation filter, bandpass, AHF
- LP 515, dichromatic mirror, longpass, AHF
- BP 535/30 (BP 520-550), emission filter, bandpass, AHF
Transmitted Illumination
Lamp (Halogen, 100W)
Fluorescence Illumination
X-Cite 120W
X-Cite, Metal halide lamp
Camera
Imagine Source DMK 31AF03, Monochrome CCD camera, dexel size 4.65 µm
| port | top port |
| bit depth | 8 bit |
| sensor size | 1/3 inch |
| maximum frame size | 1024x768 dexel |
| maximum full chip frame rate | 30 fps |
Diagnostic Instrument RT Spot, Monochrome CCD camera, dexel size 6.7 µm
| port | top port |
| magnification | 1x |
| bit depth | 12 bit |
| maximum frame size | 1600 x 1200 dexel |
XY Stage
Additional Equipment
reflection darkfield oil condenser
