W9 - Zeiss Upright Apotome (Zeiss)

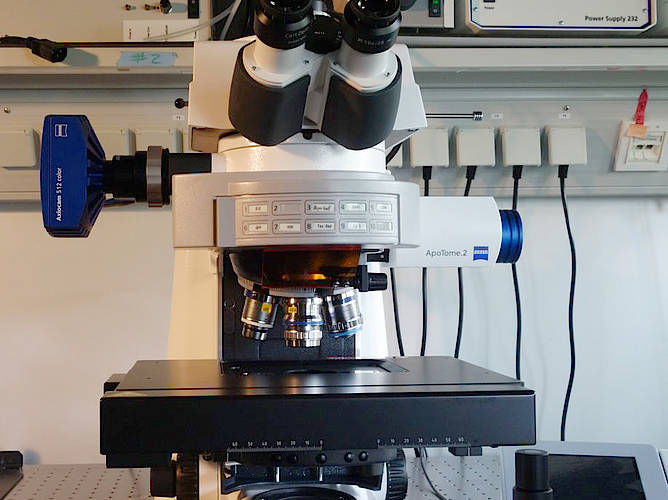

Research-grade upright widefield microscope equipped with a motorized stage and an ApoTome.2 for improved z-contrast. The system features two cameras: one color camera for Brightfield imaging of e.g. histological samples and one B/W camera for Differential Interference Contrast (DIC), Darkfield and Fluorescence imaging.
Category
Widefield, ApoTome
Location
MPI-CBG, LMF MPI-CBG, room 036
Suitable for Specimen
Suitable for Technique
Microscope Stand
Objectives
20x/0.8 Plan-Apochromat, Air, Zeiss
| Immersion: | Air |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 0.55 mm |
| Thread: | M27 |
| Tube Length: | infinity |
| Objective ID: | MPI-CBG 47 20x/0.8 Zeiss |
| Order Number: | 420650-9901 |
20x/0.8 Plan Apochromat, Air, Zeiss
| Immersion: | Air |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 0.55 mm |
| Thread: | M27 |
| Tube Length: | infinity |
| Objective ID: | MPI-CBG 402 20x/0.8 Zeiss |
| Order Number: | 420650-9902-000 |
40x/0.95 Plan Apochromat, Air, Zeiss
| Immersion: | Air |
| Collar: | coverslip correction |
| Coverslip Thickness: | 0.13-0.21 |
| Working Distance: | 0.25 mm |
| Thread: | M27 |
| Tube Length: | infinity |
| Objective ID: | MPI-CBG 403 40x/0.95 Zeiss |
| Order Number: | 420660-9970-000 |
63x/0.95 Plan-Neofluar, Air, Zeiss
| Immersion: | Air |
| Collar: | coverslip correction |
| Coverslip Thickness: | 0.13-0.21 |
| Working Distance: | 0.12 mm |
| Thread: | M27 |
| Tube Length: | infinity |
| Objective ID: | MPI-CBG 404 60x/0.95 Zeiss |
| Order Number: | 420380-9970-000 |
100x/1.4 Plan Apochromat, Oil, DIC, Zeiss
| Immersion: | Oil |
| Coverslip Thickness: | 0.17 |
| Working Distance: | 0.17 mm |
| Nomarski Prism: | PA 100/1,4 HC II (426949) |
| Thread: | M27 |
| Tube Length: | infinity |
| Objective ID: | MPI-CBG 405 100x/1.4 Zeiss |
| Order Number: | 420792-9901-000 |
Condenser
Fluorescence Filter Cubes
revolver
DAPI (set 49)
single cube for DAPI, Alexa 405
- G 365, excitation filter, bandpass, Zeiss
- LP 395, dichromatic mirror, longpass, Zeiss
- BP 445/50 (BP 420-470), emission filter, bandpass, Zeiss
Zeiss, set 49
CFP (set 47 HE)
single cube for CFP
- BP 436/25 (BP 424-449), excitation filter, bandpass, Zeiss
- LP 455, dichromatic mirror, longpass, Zeiss
- BP 480/40 (BP 460-500), emission filter, bandpass, Zeiss
Zeiss, set 47 HE
eGFP (set 38)
single cube for Alexa488/GFP
- BP 470/40 (BP 450-490), excitation filter, bandpass, Zeiss
- LP 495, dichromatic mirror, longpass, Zeiss
- BP 525/50 (BP 500-550), emission filter, bandpass, Zeiss
Zeiss, set 38
YFP (set 46)
single cube for YFP
- BP 500/24 (BP 488-512), excitation filter, bandpass, Zeiss
- LP 515, dichromatic mirror, longpass, Zeiss
- BP 535/30 (BP 520-550), emission filter, bandpass, Zeiss
Zeiss, set 46
Texas red (set 45)
Cy5 (set 50)
single cube for Alexa633/Cy5, Cy5
- BP 640/30 (BP 625-655), excitation filter, bandpass, Zeiss
- LP 660, dichromatic mirror, longpass, Zeiss
- BP 690/50 (BP 665-715), emission filter, bandpass, Zeiss
Zeiss, set 50
Transmitted Illumination
LED (LED)
Fluorescence Illumination
HXP 120V
Zeiss, Metal halide lamp, 120W, integrated
Camera
Zeiss AxioCam 506 mono, Monochrome CCD camera, dexel size 4.54 µm
| port | top port |
| magnification | 1x |
| bit depth | 14 bit |
| sensor size | 12 x 10 mm |
| maximum frame size | 2752 x 2208 dexel |
| maximum full chip frame rate | 19 fps |
Zeiss Axiocam 512 color, Color CCD camera, dexel size 3.1 µm
| port | left side port |
| magnification | 1x |
| bit depth | 14 bit |
| sensor size | 13.2 x 8.8 mm |
| maximum frame size | 4250 x 2838 dexel |
| maximum full chip frame rate | 10 fps |
XY Stage
Structured Illumination
ApoTome2, Zeiss
structured illumination for optical sectioning
Computer
Software
Additional Information
