CFCI-LSM 02 Leica TCS SP5 (Leica)

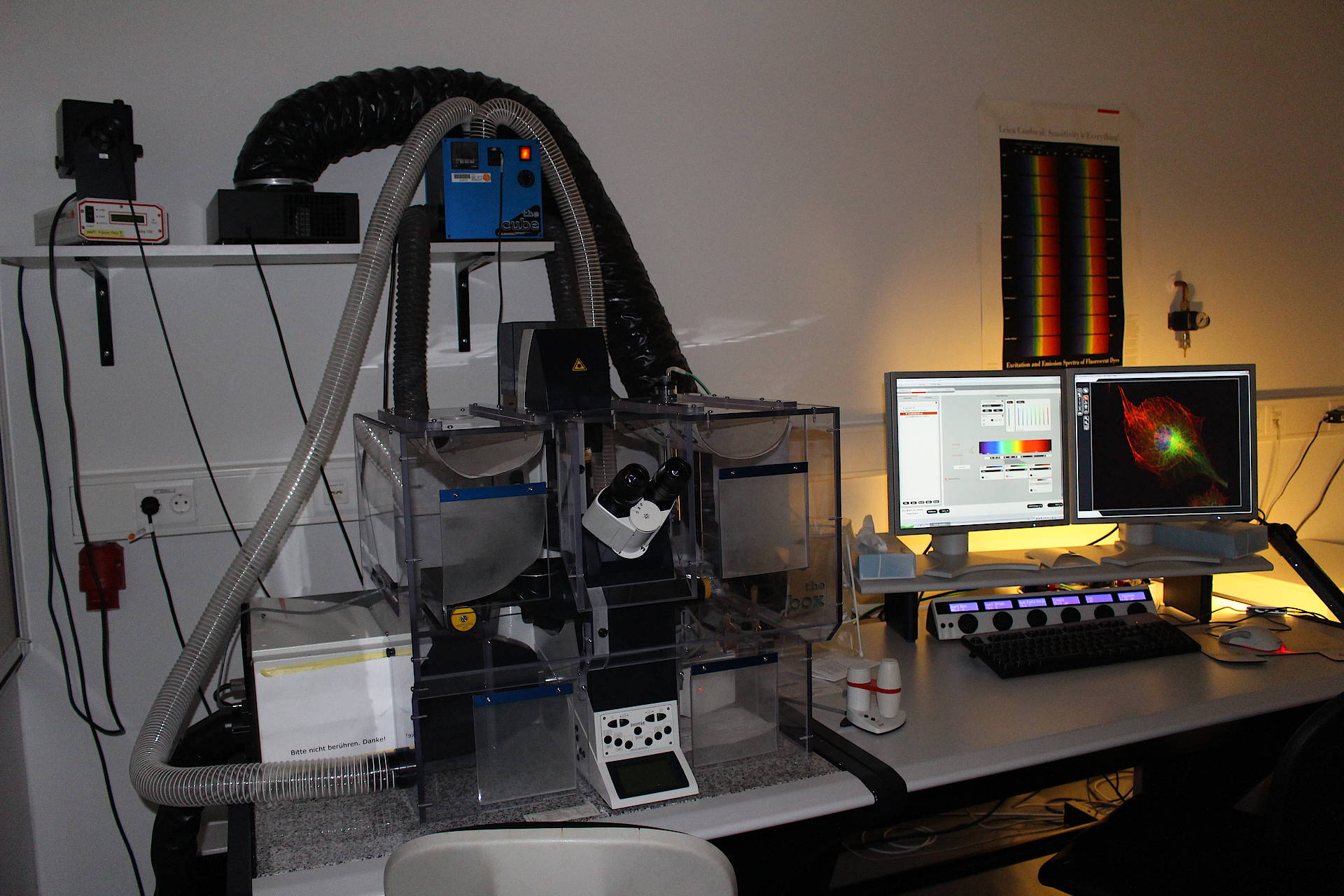

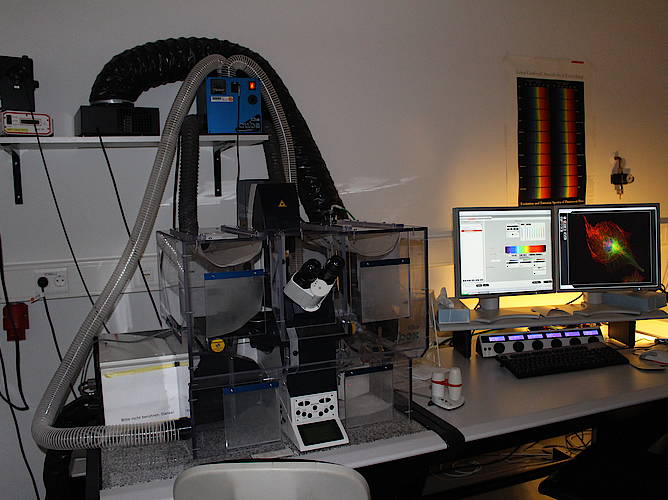

The Leica SP 5 confocal laserscanning microscope is designed for routine work. The Incubator and a CO2 system allow experiments with living cells. The laser lines are well distributed over the spectrum. Special techniques like FRET and FRAP are can be done easily. Due to the conventional setup, it offers straight forward working conditions. The microscope is also capable for brightfield.

Category

Laser scanning confocal

Location

MTZ, LMF & EMF CFCI, room B.20.001C

Suitable for Specimen
Live samples
Fixed samples
Suitable for Technique
Spectral unmixing
3D imaging
Multiple positions
Timelapse imaging
Microscope Stand

Leica DMI 6000, inverted stand
motorized objective revolver, motorized z-focus

Objectives

5x/0.15 HCX PL FLUOTAR, Air, DIC, Leica

Immersion: Air
Coverslip Thickness: -
Working Distance: 13.7 mm
Tube Length: infinity
Objective ID: MTZ L_5x_0,15_01 5x/0.15 Leica
Order Number: 11506224

10x/0.5 HC PL APO CS, Air, DIC, Leica

Immersion: Air
Coverslip Thickness: 0.17
Working Distance: 2.2 mm
Tube Length: infinity
Objective ID: MTZ L_10x_0,40_01 10x/0.4 Leica
Order Number: 11506285

20x/0.7 HCX PL APO, Air, DIC, Leica

Immersion: Air
Coverslip Thickness: 0.17
Working Distance: 0.59 mm
Tube Length: infinity
Objective ID: MTZ L_20x_0,70_01 20x/0.7 Leica
Order Number: 11506513

40x/0.75 HCX PL APO lambda blue, Oil, DIC, Leica

Immersion: Oil
Coverslip Thickness: 0.17
Working Distance: 0.1 mm
Tube Length: infinity
Objective ID: MTZ L_40x_1,25_01 40x/1.25-0.75 Leica
Order Number: 11506253

63x/1.2 HCX PL APO lambda blue, Water, DIC, Leica

Immersion: Water
Collar: coverslip correction
Coverslip Thickness: 0.14-0.18
Working Distance: 0.22 mm
Tube Length: infinity
Objective ID: MTZ L_63x_1,20_01 63x/1.2 Leica
Order Number: 11506213

63x/1.4 HCX PL APO lambda blue, Oil, DIC, Leica

Immersion: Oil
Coverslip Thickness: 0.17
Working Distance: 0.1 mm
Tube Length: infinity
Objective ID: MTZ L_63x_1,40_01 63x/1.4-0.6 Leica
Order Number: 11506192
Condenser

H/DIC
NA 0.55

Computer

Windows 7 Professional (64 bit) operating system

  • 8 GB RAM
  • Intel Xeon E5-1620 v2 CPU
  • NVIDIA QUADRO K600 (1GB) grafic card
  • 2 x 19" display
Additional Information
  • Inventory Number 0057454/00
  • Date of Installation 28.07.2006
